TDY

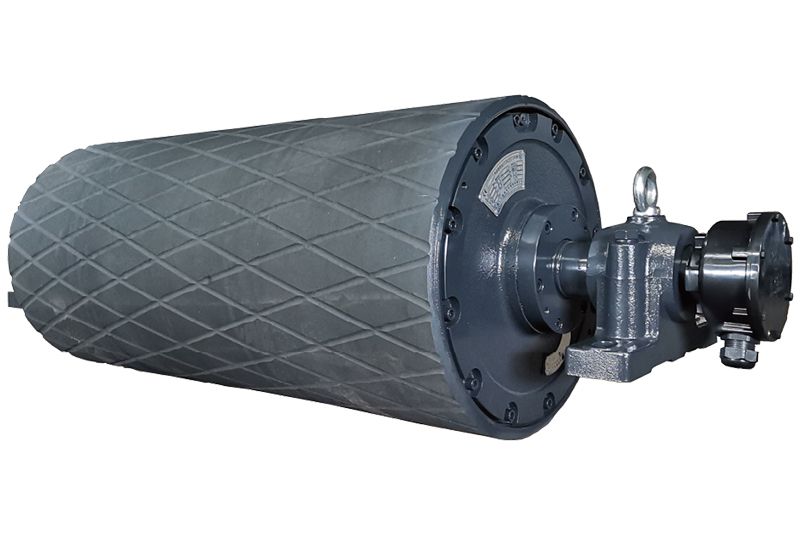

Oil-Cooled Motorized Pulley (Ø320-800mm)

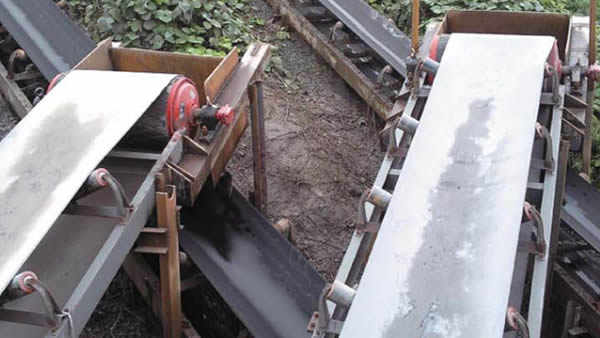

Drum motor used in belt conveyors for bulk handling

Oil-Cooled Motorized Pulley (Ø320-800mm)
  • Oil-Cooled Motorized Pulley (Ø320-800mm)
  • Oil-Cooled Motorized Pulley (Ø320-800mm)
    • TDY

    Oil-Cooled Motorized Pulley (Ø320-800mm)

    Drum motor used in belt conveyors for bulk handling

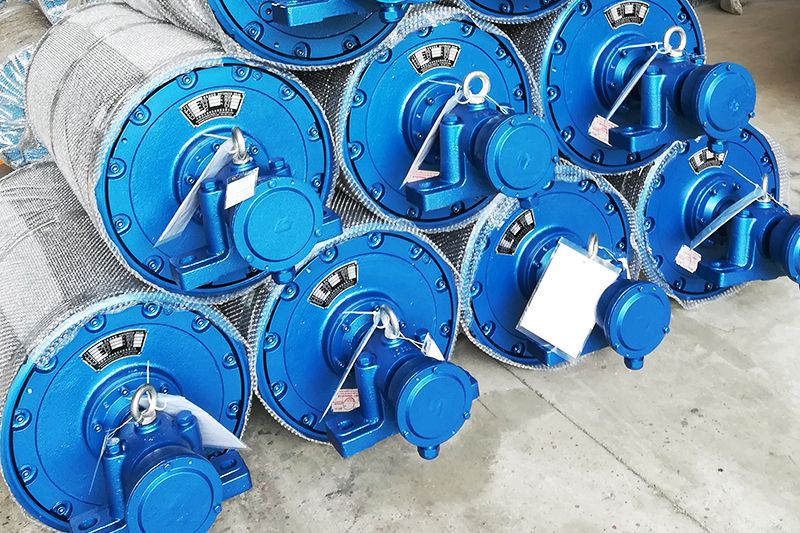

    TDY type oil-cooled motorized pulley, a commonly used drum motor, comes with a high-efficiency aluminum shell motor, with cast iron front and rear end cover. The motor supplied by professional manufactures comes with performance indicators that are no lower than the standards of high-efficiency motors of the same power rating.

    Applications

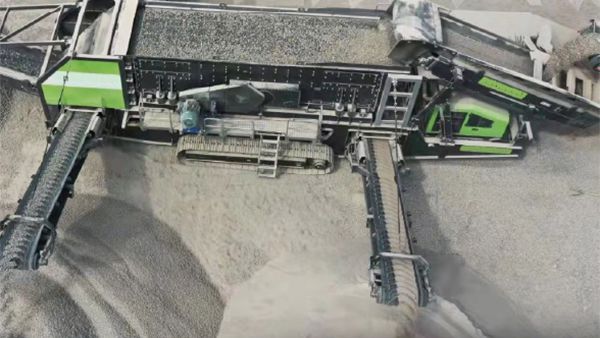

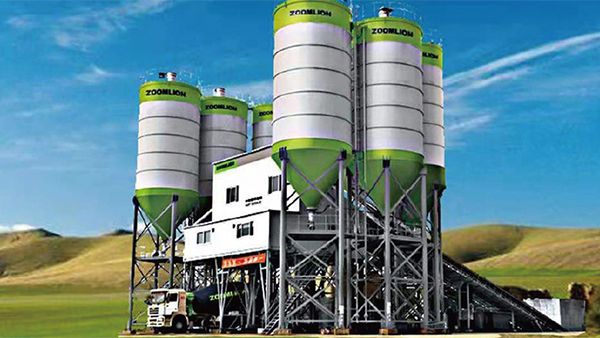

    Batching plant, mobile crushing & sorting station

    • Oil-Cooled Motorized Pulley (Ø320-800mm)
    • Oil-Cooled Motorized Pulley (Ø320-800mm)
    • Oil-Cooled Motorized Pulley (Ø320-800mm)
    Request a Quote
    Technical Data
    Drum Diameter
    D mm    		 Motor Power
    P kW    		 Belt Width
    B mm    		 Belt Speed
    V m/s    		 Weight
    M kg
    0.25 0.32 0.4 0.5 0.63 0.8 1.0 1.25 1.6 2.0 2.5 3.15
    Ø320 2.2/3/4 500/650/800/1000   △ △ √ √ √ √ √ √ √     235/245/255/260
    5.5/7.5 500/650/800/1000         √ √ √ √ √ √     269/275/283/290
    Ø400 2.2/3/4 500/650/800/1000   √ √ √ √ √ √ √ √ √ √   253/267/277/300
    5.5/7.5 500/650/800/1000         √ √ √ √ √ √ √   267/290/320/350
    11/15 800/1000                 √ √ √   380/442
    Ø500 2.2/3 500/650/800/1000   △ △ △ △ △ △ △ △ △     298/313/343/365
    4/5.5 500/650/800/1000 △ △ √ √ √ √ √ √ √ √ √   365/401/430/442
    7.5/11 650/800/1000/1200       √ √ √ √ √ √ √ √ √ 475/512/550/590
    15/18.5 800/1000/1200         √ √ √ √ √ √ √ √ 575/615/665
    22 800/1000/1200               √ √ √ √ √ 585/625/680
    Ø630 4/5.5 650/800/1000/1200/1400 △ △ △ △ √ √ √ √ √ √ √ √ 565/572/603/673/750
    7.5/11 650/800/1000/1200/1400   △ △ △ √ √ √ √ √ √ √ √ 608/674/706/776/854
    15 800/1000/1200/1400           √ √ √ √ √ √ √ 692/724/794/870
    18.5 800/1000/1200/1400             √ √ √ √ √ √ 730/762/832/910
    22 800/1000/1200/1400               √ √ √ √ √ 740/772/842/920
    30/37 1000/1200/1400/1600               √ √ √ √ √ 980/1050/1130/1150
    45 1000/1200/1400/1600               √ √ √ √ √ 1010/1090/1150/1210
    Ø800 11/15 800/1000/1200/1400             √ √ √ √ √   797/829/886/957
    18.5/22 800/1000/1200/1400                 √ √ √   845/877/947/1025
    30/37 1000/1200/1400/1600               √ √ √ √   1050/1100/1150/1200
    45 1000/1200/1400/1600                 √ √ √   1080/1130/1180/1230
