Poly V-Belt Driven Roller Conveyor

Conveyor system for unit handling

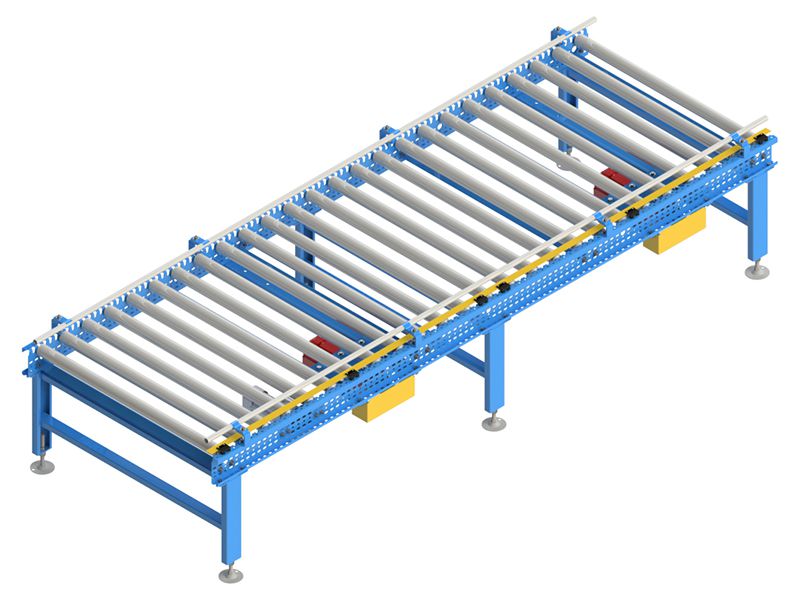

Poly-V belt driven roller conveyor utilizes a power-driven poly-V belt (or other drive methods) to drive the transport of goods. This conveyor system mainly consists of a frame, rollers, power system, and control unit. The conveyor can be modularly segmented and designed for short-travel multi-station configurations, allowing for flexible assembly. Poly-V belt driven roller conveyor is suitable for transferring light-duty goods, with lower noise and faster conveying speed compared to chain-driven systems. Conveying modes are optional in horizontal conveying, slight incline conveying, merging, and curved incline conveying.

Transportable Materials

Cartons, turnover boxes

Applicable Industries

EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.

Features
  • Rollers can be customized according to project requirements.
  • Frame made of profile steel or aluminum profile: 125x35x2.5mm.
  • Modular design allows for easy maintenance and repair.

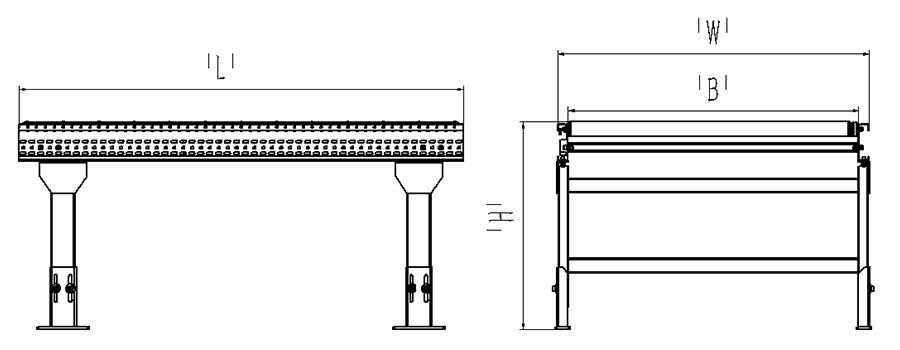

Technical Data
Poly V-Belt Driven Roller Conveyor
Parameter
Length L mm 600≤L≤3000 (Adjustable in increments of 300mm)
Width W mm B+160
Effective width B mm 400≤B≤900
Height H mm H≥250
Color Powder coating with all RAL colors available.
Nonstandard models can be customized.
Product Information
Basic Information Load Capacity ≤50kg
Speed Max 90m/min
Temperature +5℃ to +45℃
Relative Humidity ≤90% (No condensing)
Roller Roller Diameter Ø50
Drive Poly-V belt &O-ring& Timing belt &Gravity (optional)
Drive Mode Drive Motor Gear motor &drum motor (optional)
Motor Power 0.05D, 0.09, 0.12, 0.2kW (braked motor is available)
Motor Voltage 380V
Brake Voltage 220V
Drive Method Depending on project
Installation Ground Installation Expansion bolts
Ground Flatness Level ground, error ≤5°
Height Adjustment ±30mm
