    Conical Permanent Magnet Motorized Pulley (Ø129-213mm)

    Conical motorized drum used in belt conveyors for unit handling

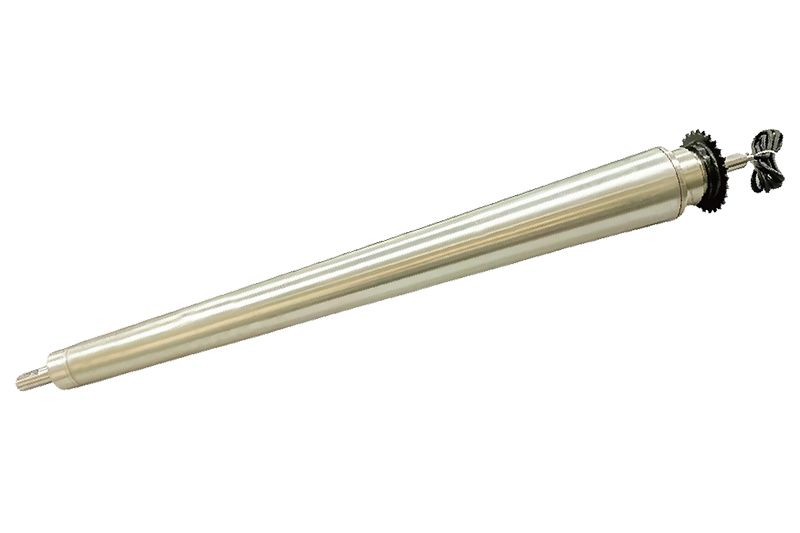

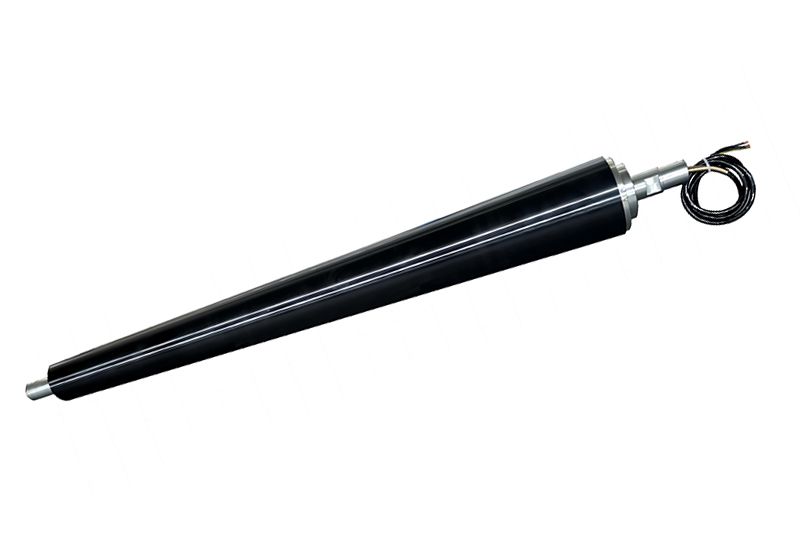

    JTD conical permanent magnet motorized pulley is composed of a motor, reducer, conical drum, and sprocket.

    Applications

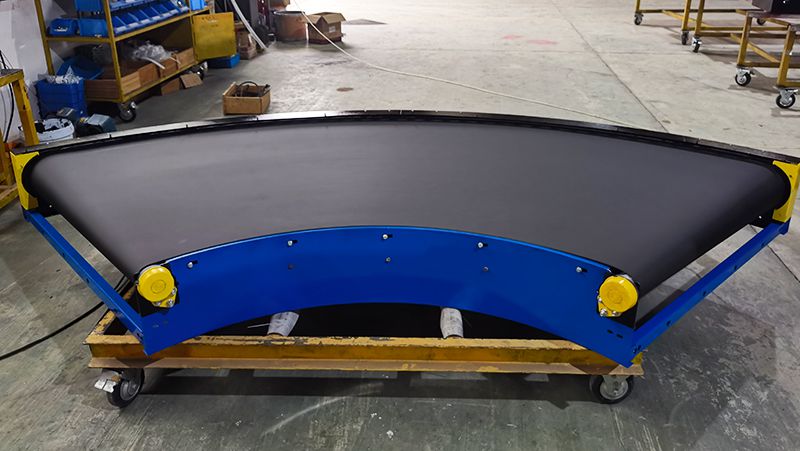

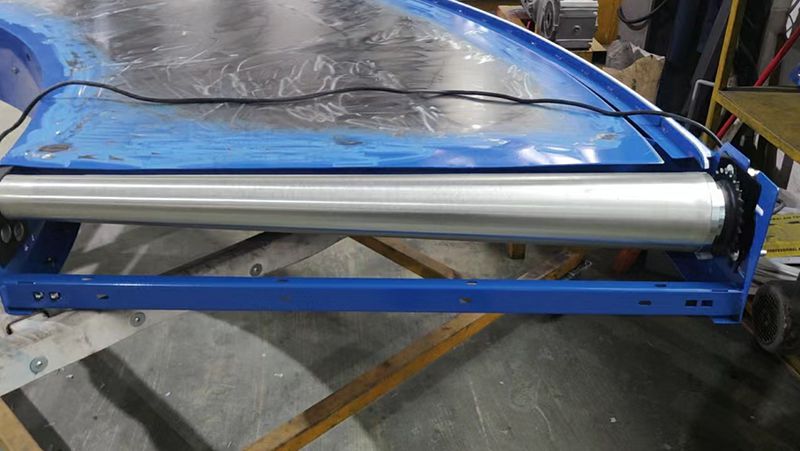

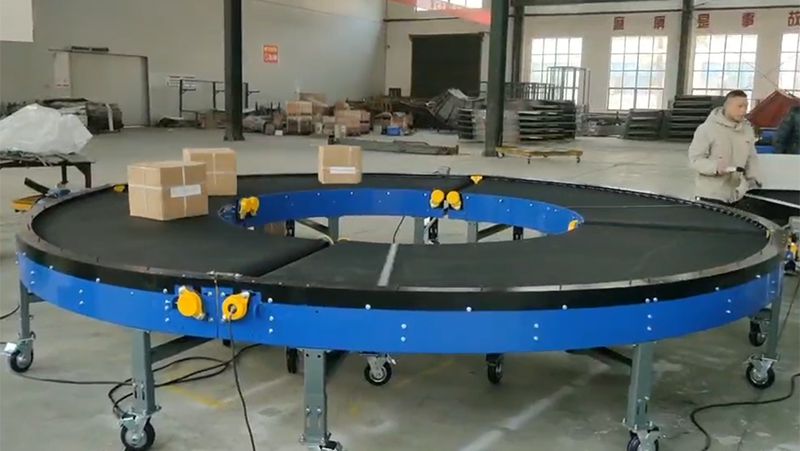

    Conical permanent magnet motorized pulley is widely used in curved conveyor equipment in industries such as e-commerce, postal services, food, pharmaceuticals, tobacco, tires, and papermaking.

    • Conical Permanent Magnet Motorized Pulley (Ø129-213mm)
    • Conical Permanent Magnet Motorized Pulley (Ø129-213mm)
    • Conical Permanent Magnet Motorized Pulley (Ø129-213mm)
    Features

    This conical motorized drum is characterized by high efficiency, small size, light weight, low noise, long service life, and a wide range of speeds.

    Request a Quote
    Technical Data
    Drum Diameter
    mm    		 Rated torque
    N·m    		 Belt width
    B mm    		 Middle Diameter
    mm    		 Rated power of corresponding belt speed
    (m/s) kW
    0.8 1.0 1.25 1.6 2.0
    Ø129 40 1000 100 0.55 0.75 0.9 1.2 1.5
    Ø193 90 1200 138 1.2 1.5 1.8 2.4 3.0
    Ø213 95 1400 150 1.2 1.5 1.8 2.4 3.0

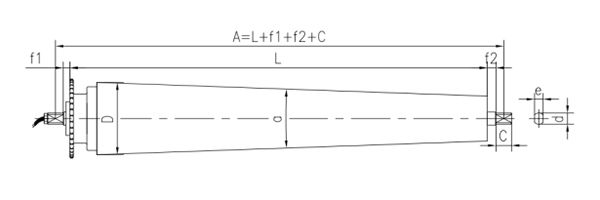

    D L f1 f2 c d e a Sprocket wheel
    Ø129 1100 21.5 21.5 43.5 30 22 3.4 10A-Z27
    Ø193 1300 21.5 21.5 43.5 30 22 4.8 10A-Z40
    Ø213 1500 21.5 21.5 43.5 30 22 4.9 10A-Z44
