Oil-Steeped Motorized Drum (Ø113-320mm)

Drum motor used in conveyor systems for handling and processing of bulk materials and units

Request a Quote

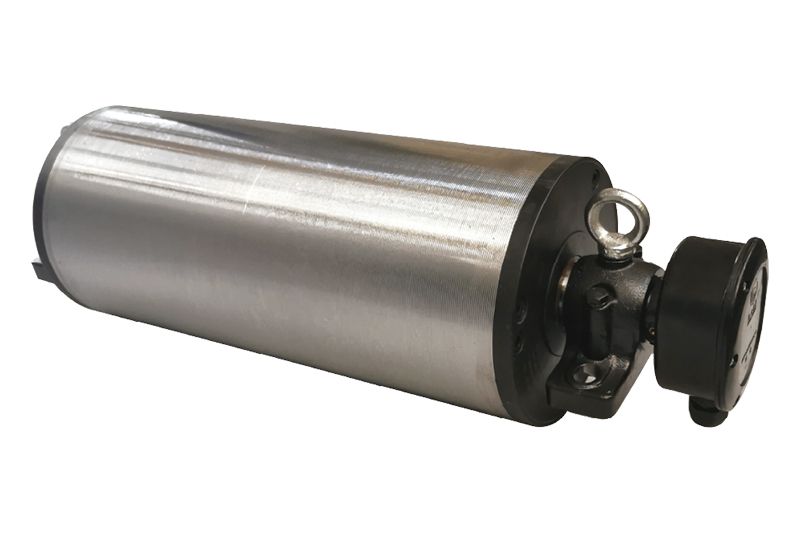

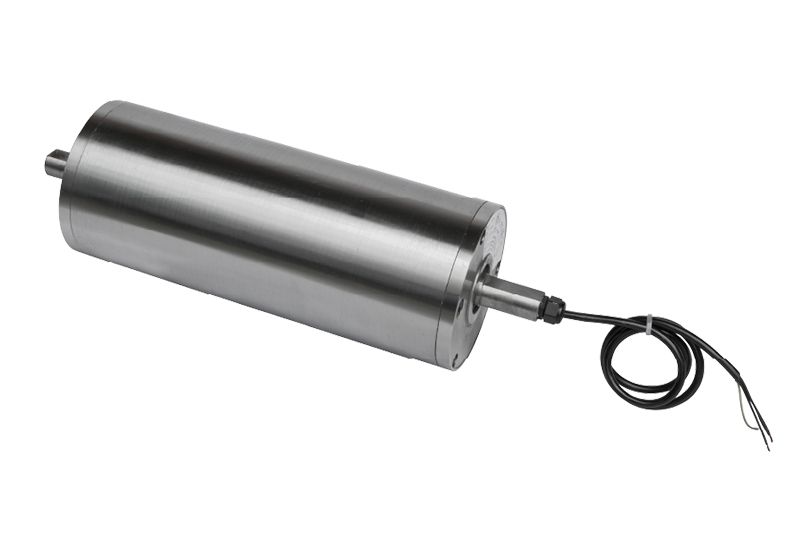

Oil-Steeped Motorized Drum (Ø113-320mm)

Drum motor used in conveyor systems for handling and processing of bulk materials and units

YD type oil-steeped motorized drum is a high-quality drum motor designed and produced by our company based on the proprietary technology of W.A.T. from Germany.

Applications

Automatic assembly lines or conveyor systems in industries such as electronics, food, postal services, light industry, airports, and ports, etc.

Features

The drum motor is oil immersed for direct cooling, providing high efficiency and a compact size.
Compared to similar products, this motorized pulley comes with lighter weight and lower noise.

Application Display

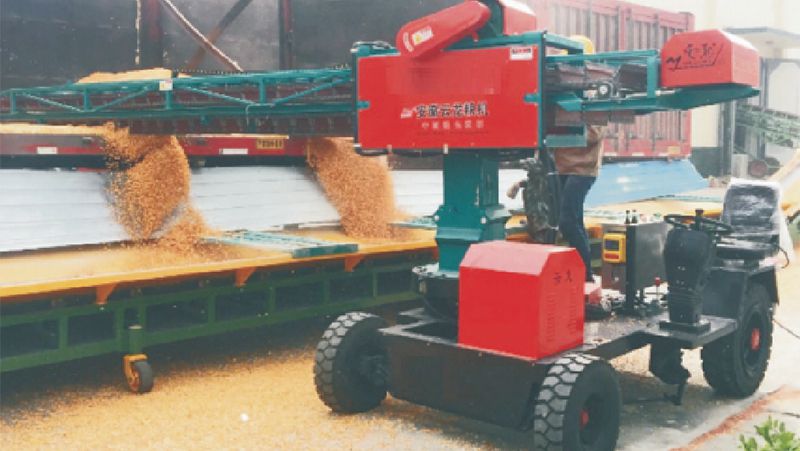

Bulk solid (grain) handling conveyor

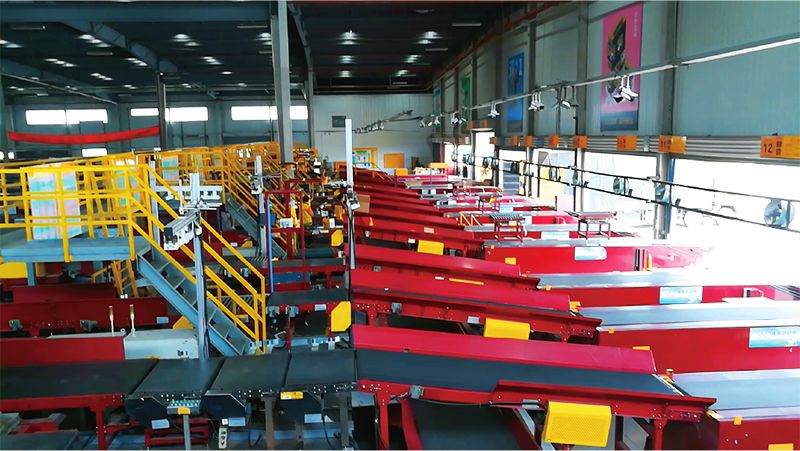

Express sorting

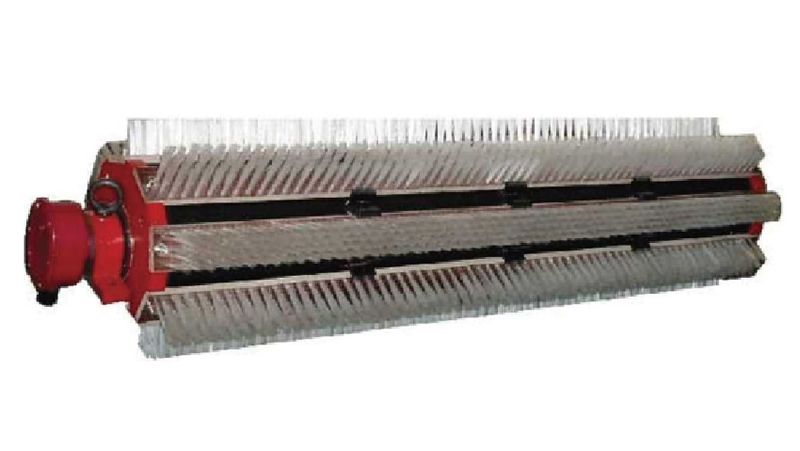

Brush cleaner

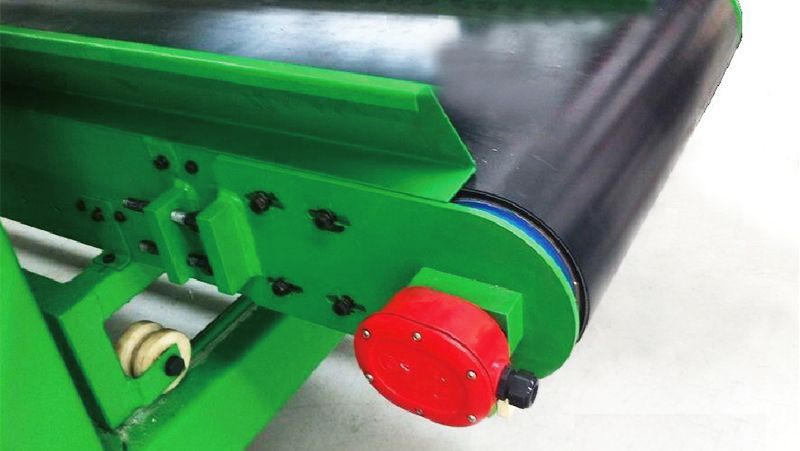

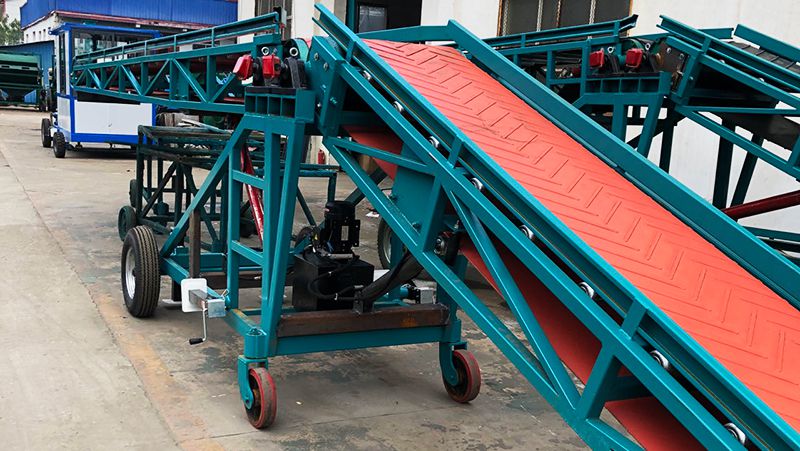

Belt conveyor
Food conveying

Technical Data

Drum Diameter D mm	Power P kW	Belt Speed V m/s	L min		50mm Weight kg
Drum Diameter D mm	Power P kW	Belt Speed V m/s	Drum Length mm	Weight kg	50mm Weight kg
Ø113	0.25	0.04, 0.05, 0.06, 0.07, 0.075, 0.08, 0.09, 0.1, 0.12, 0.15	350	16	1.1
	0.25	0.2, 0.25, 0.32, 0.4, 0.45, 0.5, 0.63	380	16
	0.37	0.4, 0.5, 0.63, 0.8, 0.9, 1.0, 1.25, 1.6, 2.0, 2.5	380	16
Ø138	0.75	0.25, 0.32, 0.4, 0.55, 0.63, 0.85, 1.6, 2.0, 2.5	420	25	1.5
Ø142	1.1	0.5, 0.63, 0.8, 1.0, 1.25, 1.7	420	25	1.5
Ø165	0.75	0.08, 0.1, 0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5	400	40	2
Ø175	1.1/1.5/2.2	0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5	550/550/575	60	2
Ø216 Ø240	0.75	0.1, 0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5	390	63	2.5
	1.1	0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5	410	67	2.5
	1.5/2.2	0.13, 0.16, 0.2, 0.25, 0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5	460/460	69	2.8
	3/3.7	0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5	510/600	81	2.8
Ø270	4/5.5/7.5	0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5	620/620/720	90	3.7
Ø320	4/5.5	0.32, 0.4, 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15	560/560	155	5
Ø320	7.5	0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15	660	160	5
