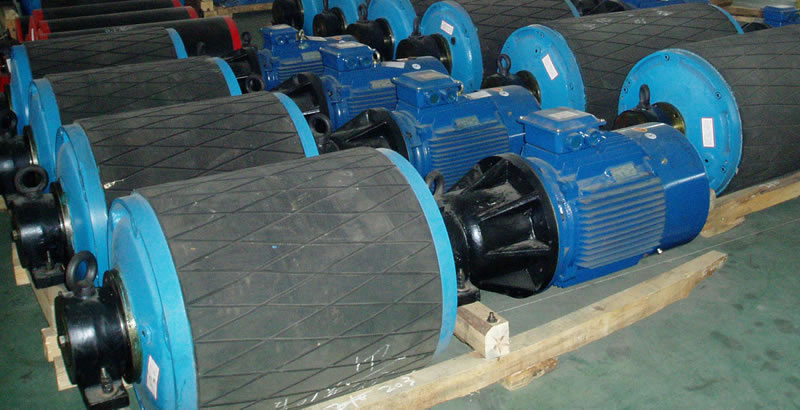

Drum motor used in belt conveyors for bulk handling

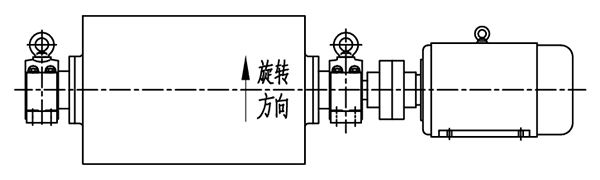

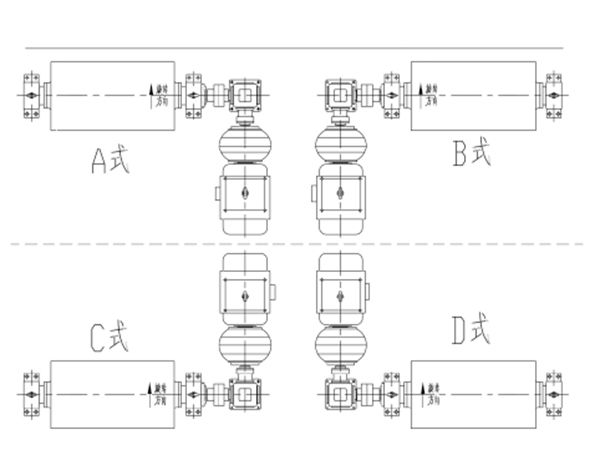

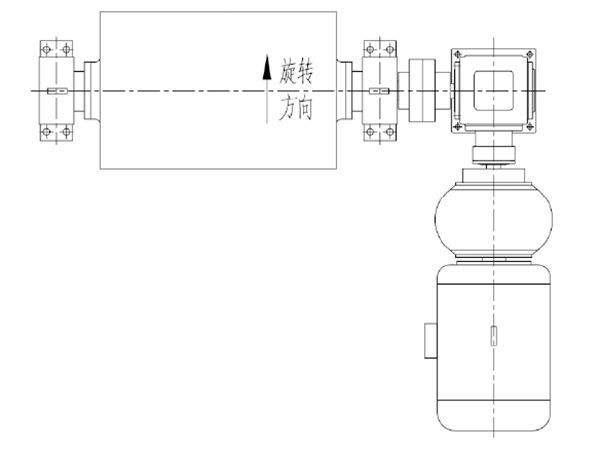

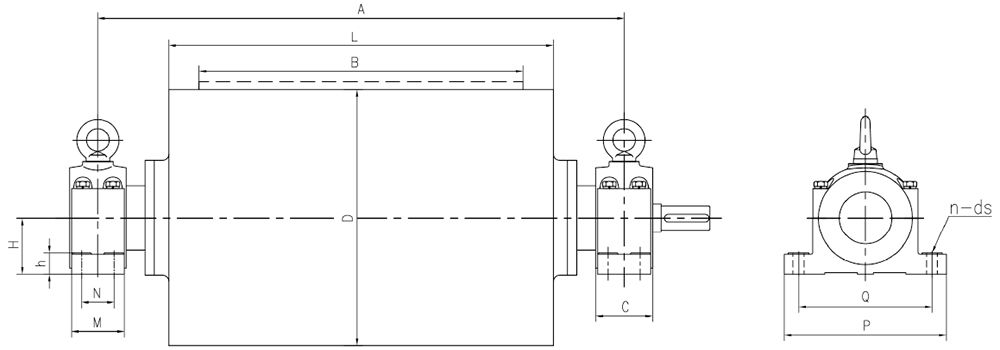

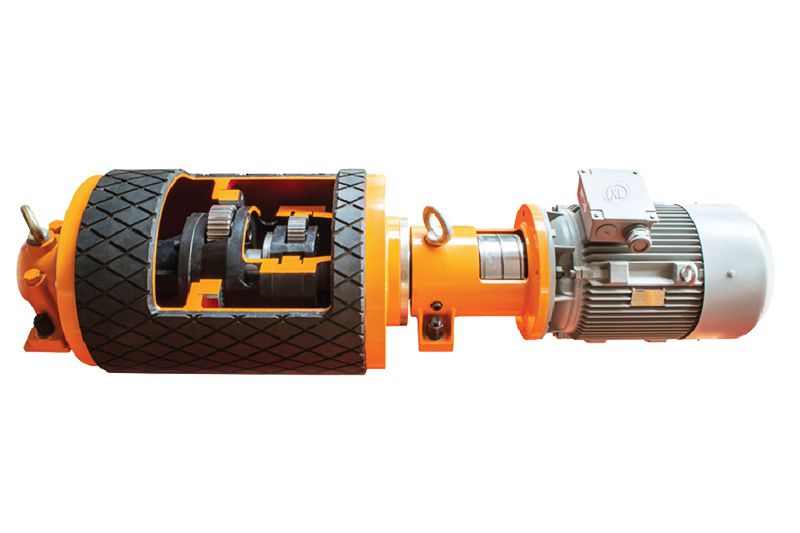

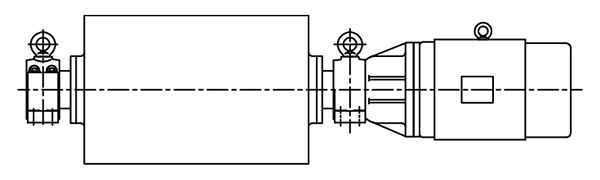

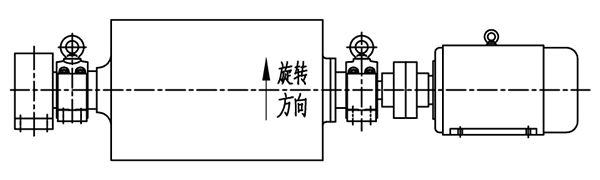

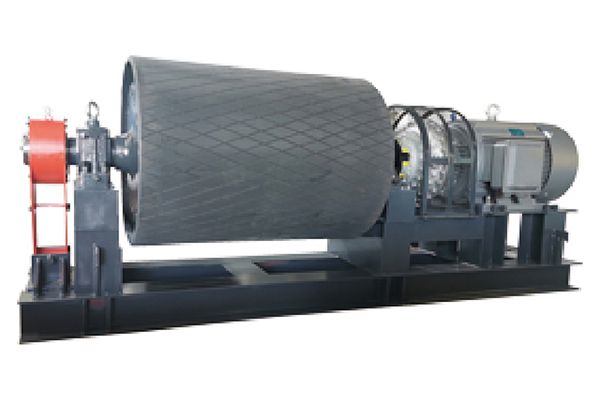

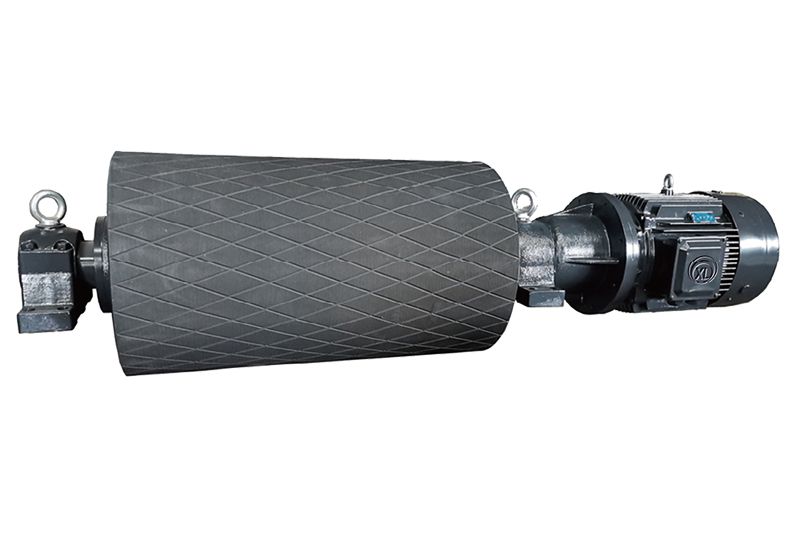

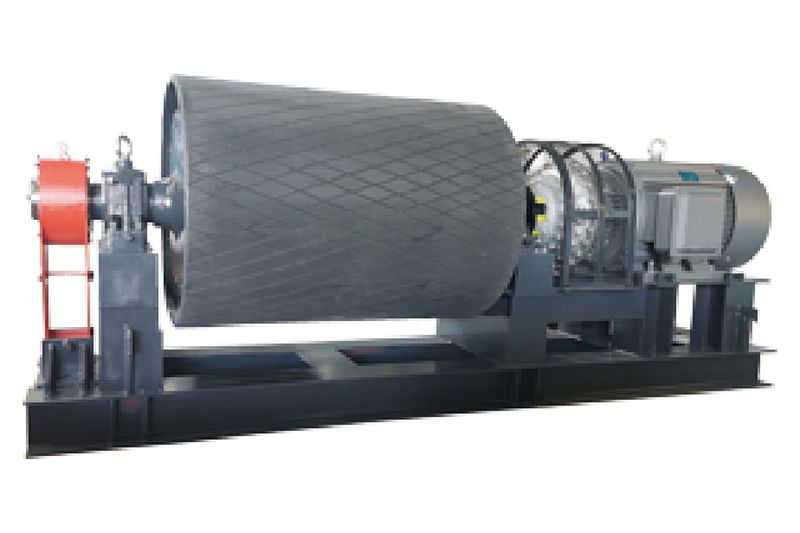

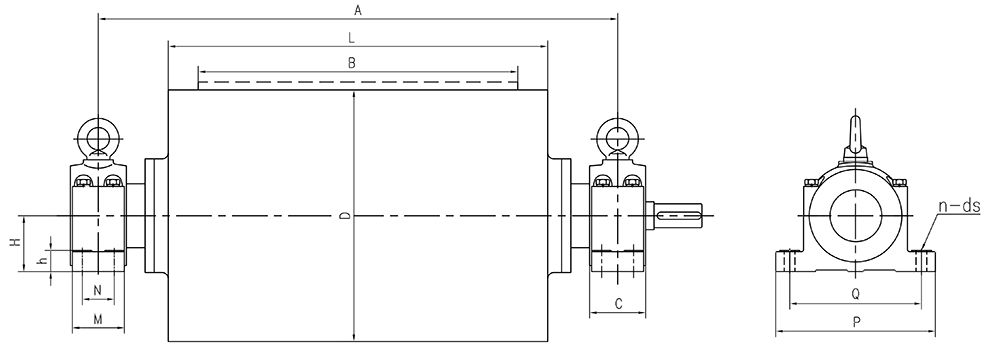

The YTH type built-out gear-reducing motorized pulley consists of three parts: drum body, drive unit, and mounting bracket (Type II without bracket). The drum body includes the drum shell, bearing plate, and the reducer installed inside the drum. The drive unit consists of an electric motor, coupling, fluid coupling, backstop, and brake. The mounting bracket is made of shaped steel and is available in an integral bracket or a motor bracket. The integral bracket is used to install the drum body, electric motor, and protective housing. The motor bracket is used to install the electric motor and protective housing, and the user can design and manufacture it as per their needs.
This drum motor comes with an operating temperature range of -20°C to +40°C, with the material being conveyed not exceeding 60°C. The altitude at the place of use generally does not exceed 1000 meters.
Request a Quote
Applications
Drive device for large and medium-sized belt conveyors with explosion-proof requirements, transporting coal and concrete in mines and ports.
Application Display

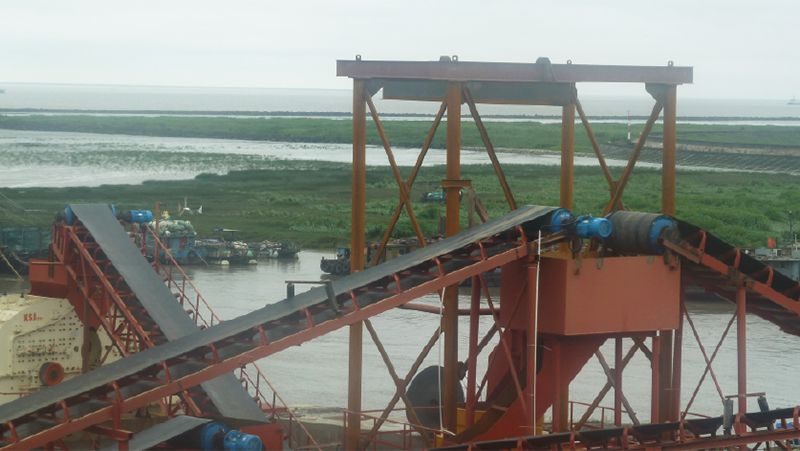

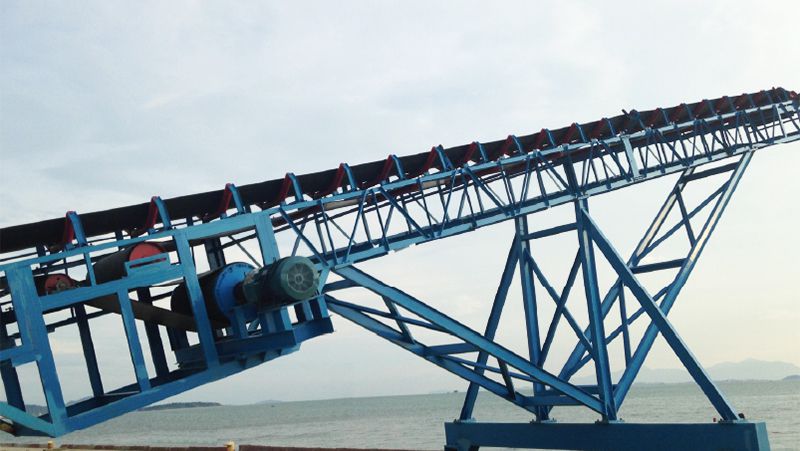

Port

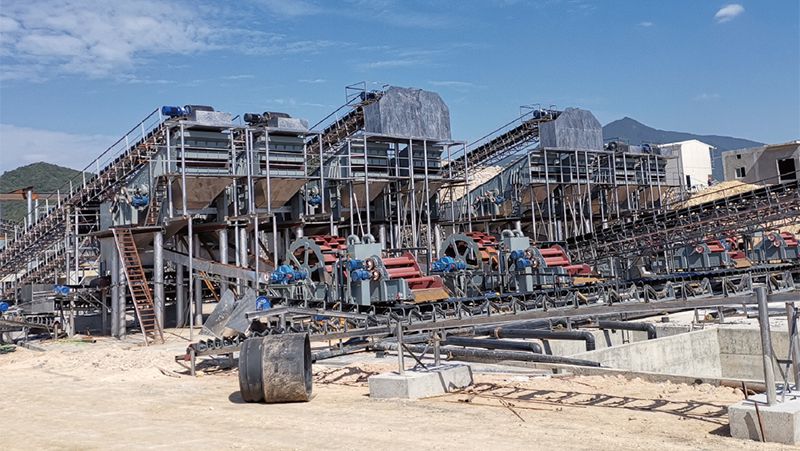

Aggregate

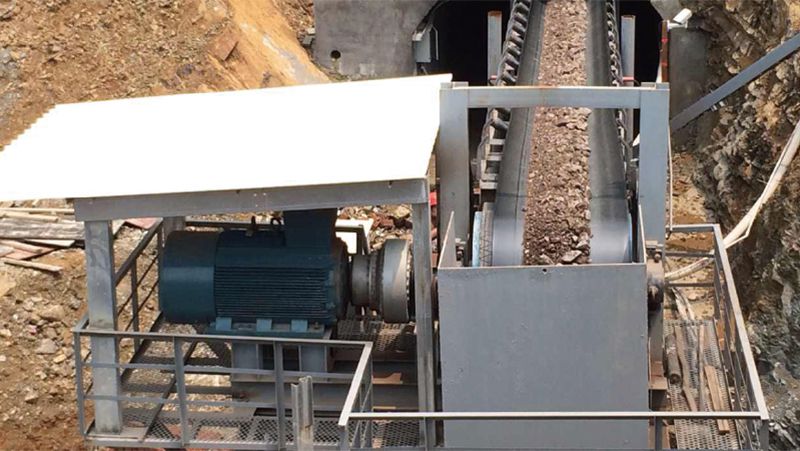

Mining
Port

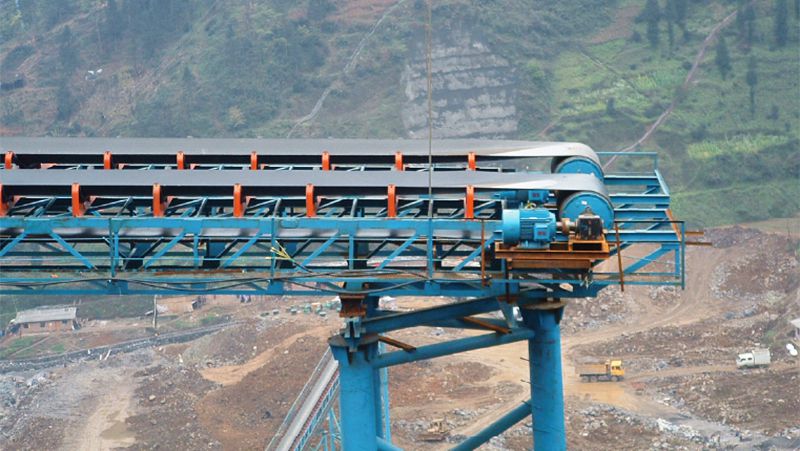

Hydropower
Features
Advanced German technology is introduced for the production of drum motors, with a hardened planetary gear transmission, ensuring smooth operation, low noise, strong overload capacity, and a wide power range.
The motorized pulley can be equipped with a fluid coupling, backstop, and brake to protect the motor from strong impact and prevent adverse effects from the continued movement of subsequent moving components after the motor stops.
The drum motor can be equipped with explosion-proof motors to provide mechanical protection and reduce the risk of accidents.
Are you looking for motorized pulleys, conveyor rollers or a fully customized conveyor system? XINGLI provides a full suite of tailored solutions. Contact us to discuss how our products can meet your specific operational needs.
