AL2213/AL2223

Sprocket Driven Conveyor Roller with Plastic Bearing Housing

Power driven rollers for chain driven roller conveyor

Sprocket Driven Conveyor Roller with Plastic Bearing Housing
  • Sprocket Driven Conveyor Roller with Plastic Bearing Housing
  • Sprocket Driven Conveyor Roller with Plastic Bearing Housing
    • Request a Quote
    AL2213/AL2223

    Sprocket Driven Conveyor Roller with Plastic Bearing Housing

    Sprocket Driven Conveyor Roller with Plastic Bearing Housing

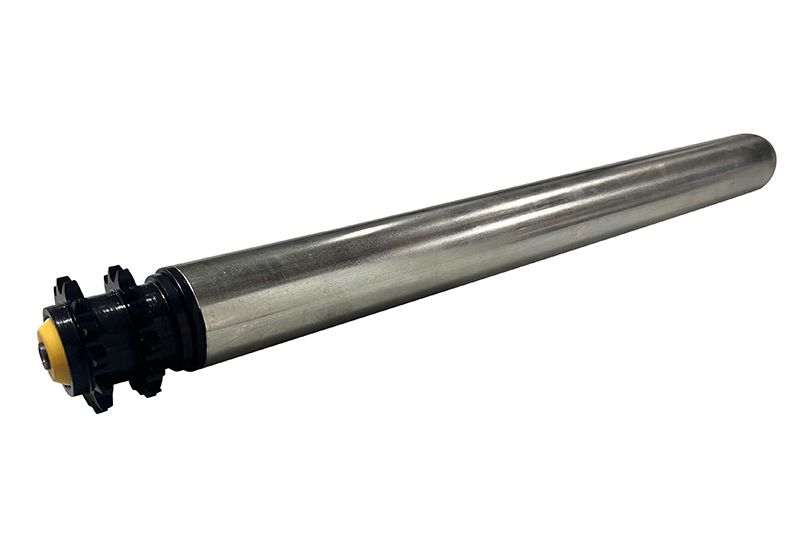

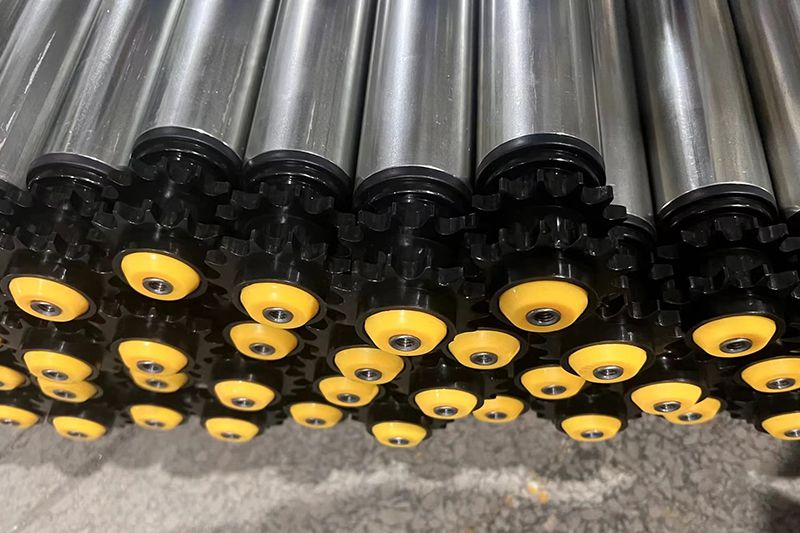

    Sprocket driven conveyor roller has a precision ball bearing with plastic inner/outer housings, and plastic-steel sprocket, greatly reducing operational noise. Long-term operation does not require regular greasing for rust prevention and lubrication of the sprocket, resulting in a long service life.

    Sprocket Driven Conveyor Roller with Plastic Bearing Housing
    Features
    • Self-lubricating with the steel chain, low maintenance, long service life
    • Light weight, smooth operation, low noise, and attractive appearance
    Applications

    Chain-driven roller conveyors

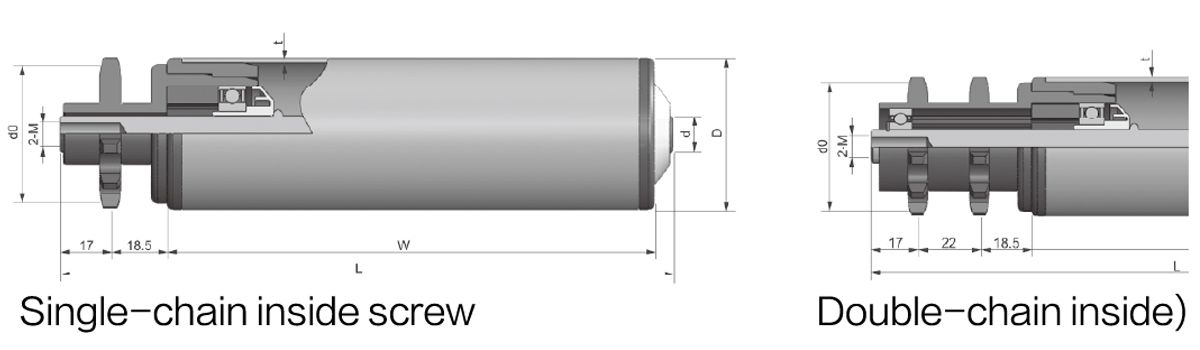

    Technical Data
    Tube Diameter (D) Tube Thickness (T) Axis Diameter (d) Sprocket Tube Material
    Galvanized Steel Stainless Steel Aluminum Alloy
    50 1.5/2.0 12 08B11Z/08B14Z √ √ √
    60 2.0 12 08B14Z √ √ √
