Chain Driven Live Roller Conveyor (CDLR Conveyor)

Conveyor system for pallet handling

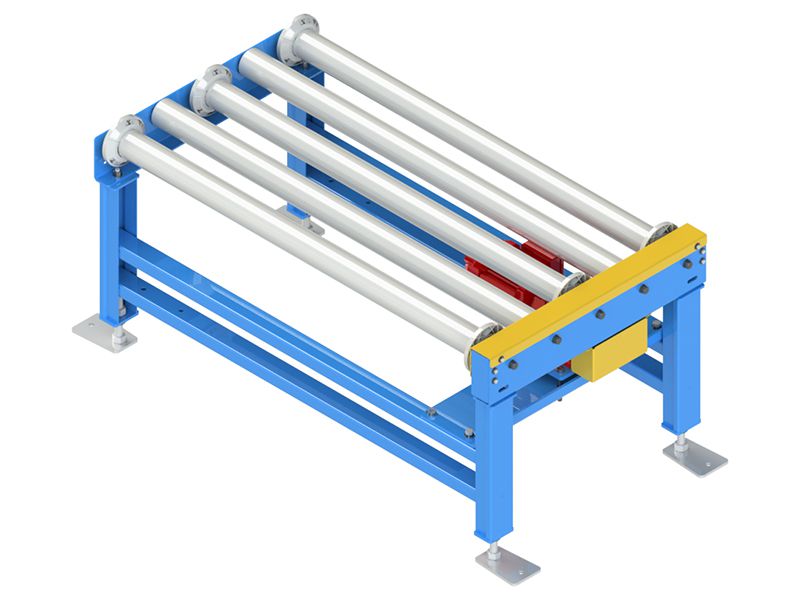

Chain driven live roller conveyor (CDLR conveyor) is a conveying system that uses rollers to horizontally transport unit loads in a continuous operation. Each individual CDLR unit is driven by a single motor, with the rollers connected by a loop chain, enabling long-distance transportation and material accumulation to enhance line efficiency. This equipment can be tailored in length, width, roller spacing, and other aspects to suit specific requirements. The CDLR conveyor boasts broad versatility, robust driving force, a simple structure, and easy maintenance.

Transportable Materials

Chain driven live roller conveyor is suitable for transporting various materials carried on pallets.

Applicable Industries

EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.

Features
  • Utilizes roller retainer guide.
  • Channel steel frame is 125x50x4mm in size.
  • Built-in motor

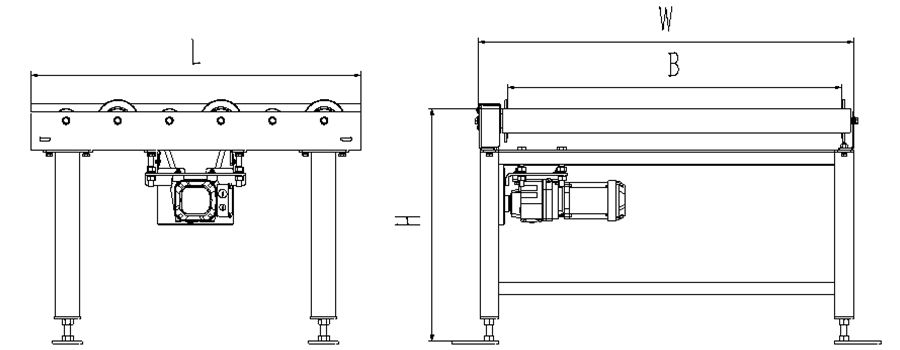

Technical Data
Pallet Chain Conveyor
Parameter
Length mm 910≤L≤5760
Width mm B+134
Effective width B mm 820≤B≤1420
Height H mm H≥350
Motor Brand SEW, NORD, CPG
Chain Brand ZIQIANG CHAIN, CHOHO
Color Powder coating with all RAL colors available.
Nonstandard models can be customized.
Product Information
Basic Information Load Capacity ≤1500kg
Speed 12, 16, 18m/min
Temperature +5℃ to +45℃
Relative Humidity ≤90% (No condensing)
Roller Roller Diameter Ø60, Ø76, Ø89
Roller Drive Steel double sprocket
Installation Internal thread
Drive Mode Drive Motor Gear motor
Motor Power 0.37, 0.55, 0.75, 1.1kW (beaked motor is available)
Motor Voltage 380V
Brake Voltage 220V
Drive Method Chain
Installation Ground Installation Expansion bolts
Ground Flatness Level ground, error ≤5°
Height Adjustment ±30mm
