Roller Transfer Unit

Pallet handling conveyor for pallet transferring at a 90° angle

Roller Transfer Unit
Request a Quote

Roller Transfer Unit

Pallet handling conveyor for pallet transferring at a 90° angle

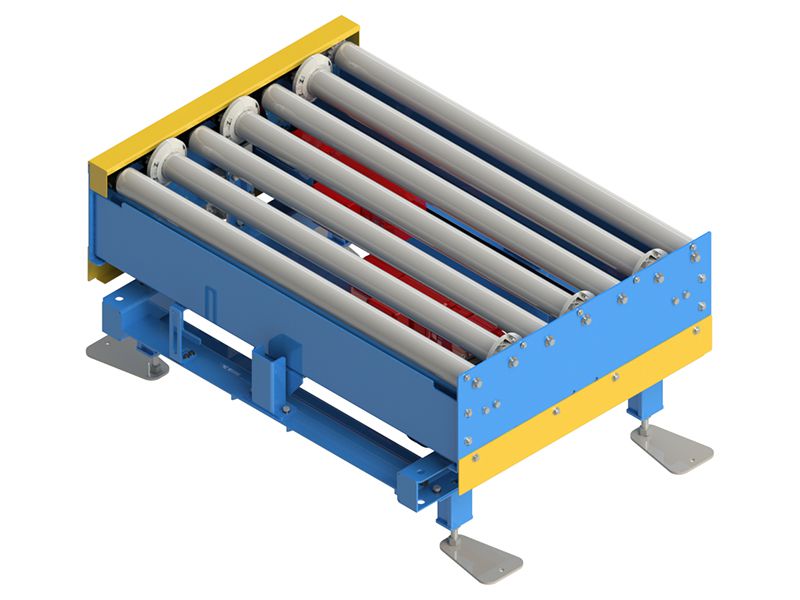

Roller transfer unit is a lifting and transfer device that provides a perpendicular transition between roller conveyors and chain conveyors, composed of a roller conveyor for unit load items and a lifting device driven by a motor. This equipment can be customized in terms of length, width, roller spacing, and other specifications according to specific requirements. Roller transfer features broad applicability, strong driving force, a simple structure, and easy maintenance. This transfer device is located beneath the chain conveyor, occupying minimal floor space, making it convenient for transferring unit loads at a 90° angle or switching production lines, facilitating multidirectional pallet transportation.

Transportable Materials

Roller transfer unit is suitable for handling various materials carried on pallets.

Applicable Industries

EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.

Features
  • Utilizes roller stopper guiding design.
  • Built-in motor.
  • Modular design allows for easy maintenance and repair.
Technical Data
Roller Transfer Unit
Parameter

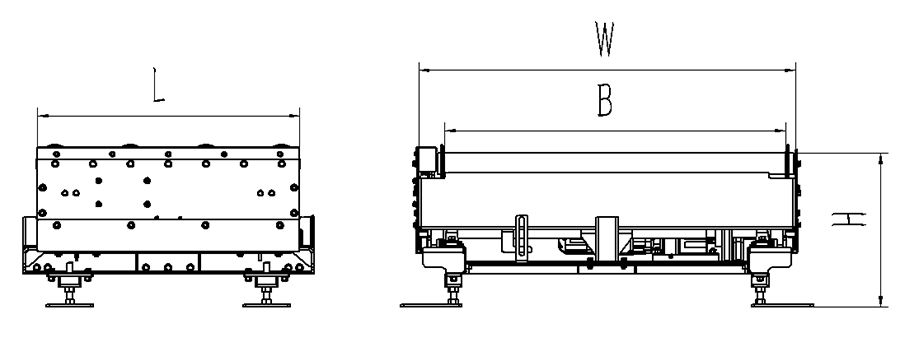

Length mm 950≤L≤1300
Width mm B+140
Effective width B mm 820≤B≤1420
Height H mm 465/545 (Low/High)
Motor Brand SEW, NORD, CPG
Chain Brand ZIQIANG CHAIN, CHOHO
Bearing/Bearing Seat Brand HRB/FSB, NSK/FSB, SKF/FSB, NSK/NSK
Color Powder coating with all RAL colors available.
Nonstandard models can be customized.
Product Information
Basic Information Load Capacity ≤1500kg
Conveying Speed 12, 16, 18m/min
Lifting time 2.5s (single travel)
Temperature +5℃ to +45℃
Relative Humidity ≤90% (No condensing)
Roller Roller Diameter Ø60, Ø76, Ø89
Roller Drive Steel double sprocket
Installation Internal thread
Drive Mode (Conveying Unit) Drive Motor Gear motor
Motor Power 0.37, 0.55, 0.75, 1.1kW (braked motor is available)
Motor Voltage 380V
Brake Voltage 220V
Drive Method Chain
Installation Ground Installation Expansion bolts
Ground Flatness Level ground, error ≤5°
Height Adjustment ±30mm
