AL2550

Poly-V Tapered Conveyor Roller

Power driven rollers for roller conveyor curves

Poly-V Tapered Conveyor Roller
  • Poly-V Tapered Conveyor Roller
  • Poly-V Tapered Conveyor Roller
  • Poly-V Tapered Conveyor Roller
    • AL2550

    Poly-V Tapered Conveyor Roller

    Power driven rollers for roller conveyor curves

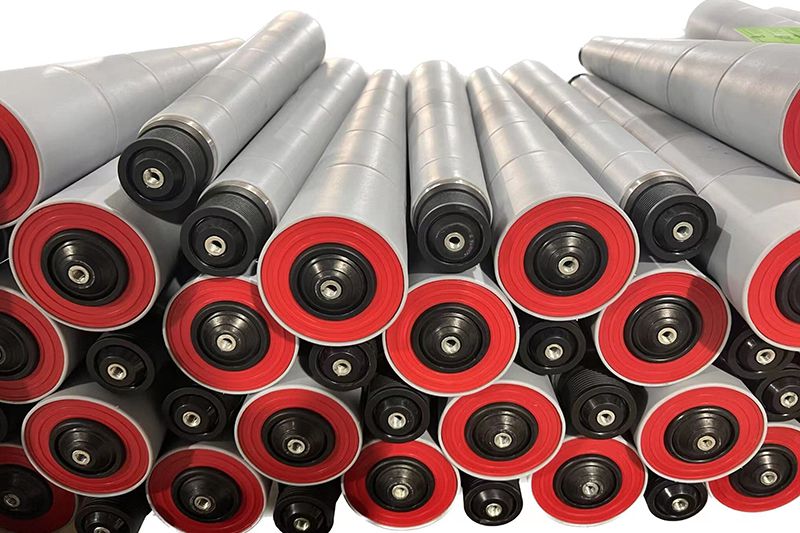

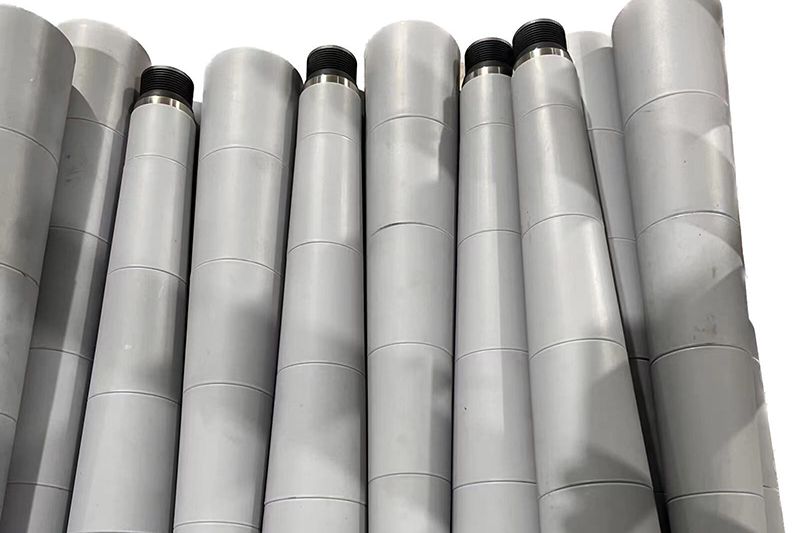

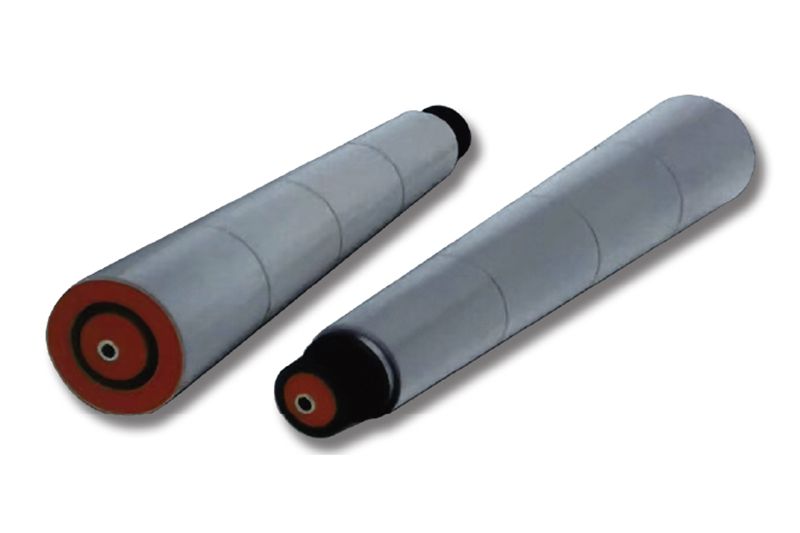

    Poly-V tapered conveyor roller is based on a poly-V conveyor roller, with a plastic conical sleeve covering the roller tube, resulting in low operational noise and excellent shock absorption. The poly-V belt pulley is installed at the end of the roller, separating the driving and conveying areas for smoother conveyance.

    Poly-V Tapered Conveyor Roller
    Request a Quote
    Applicable conveyor types

    Roller conveyor curve

    Features
    • Light weight, easy start-up.
    • Poly-V-belt drive results in high speed and low noise.

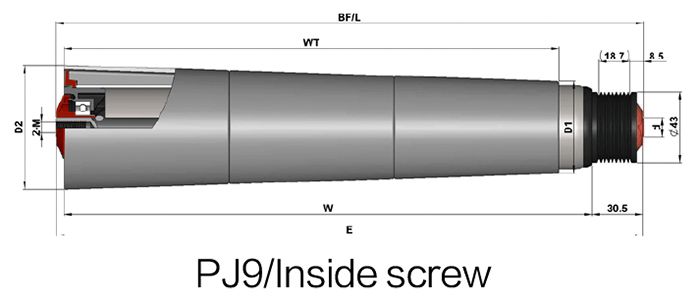

    Technical Data
    Tube Diameter Tapered Sleeve Length W Small End Diameter D1 Large End Diameter D2 Axis Diameter (d) Tube Material
    Galvanized Steel Stainless Steel
    50 300 55.6 74.5 12/15/S11 √ √
    400 80.7 √ √
    500 87.1 √ √
    600 93.3 √ √
    700 99.6 √ √
    800 105.9 √ √
    900 112.2 √ √
