Accumulating Conveyor Roller

AL3315/AL3325

Power driven rollers for accumulation conveyor

AL3315/AL3325

Accumulating Conveyor Roller

Power driven rollers for accumulation conveyor

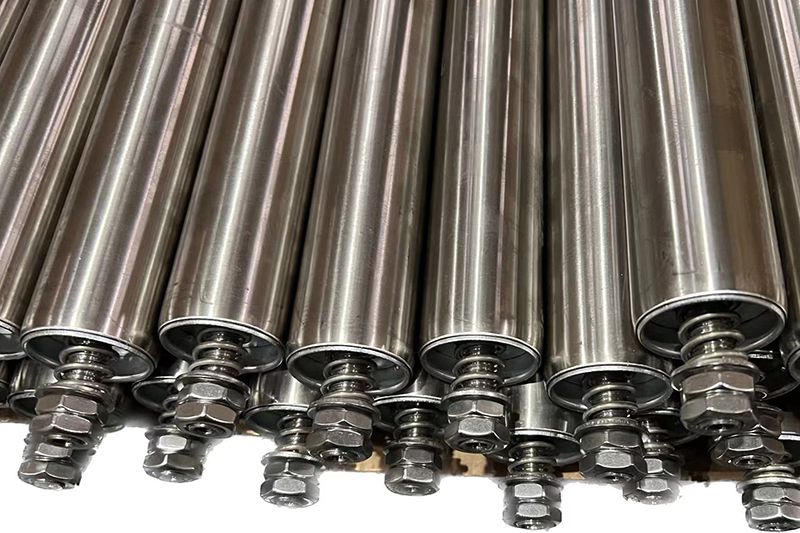

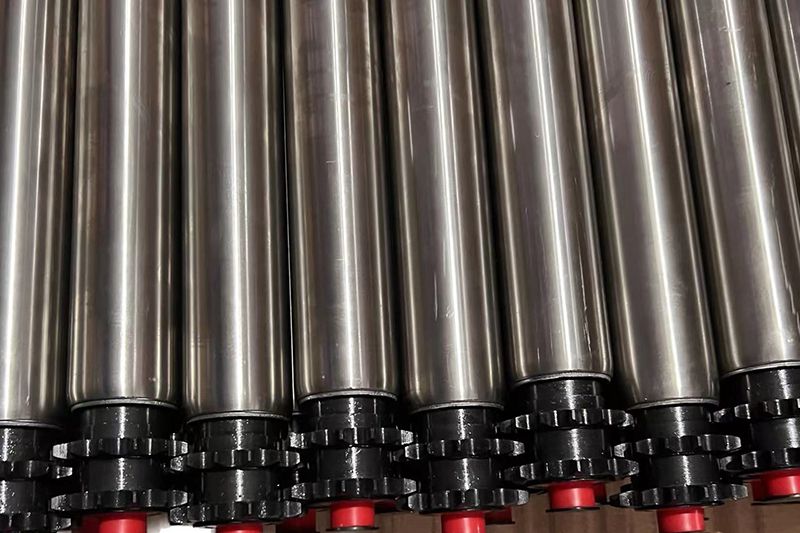

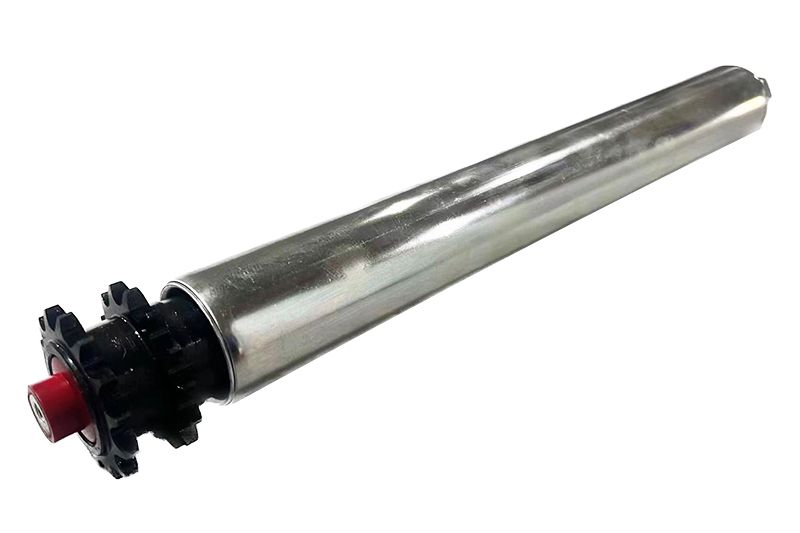

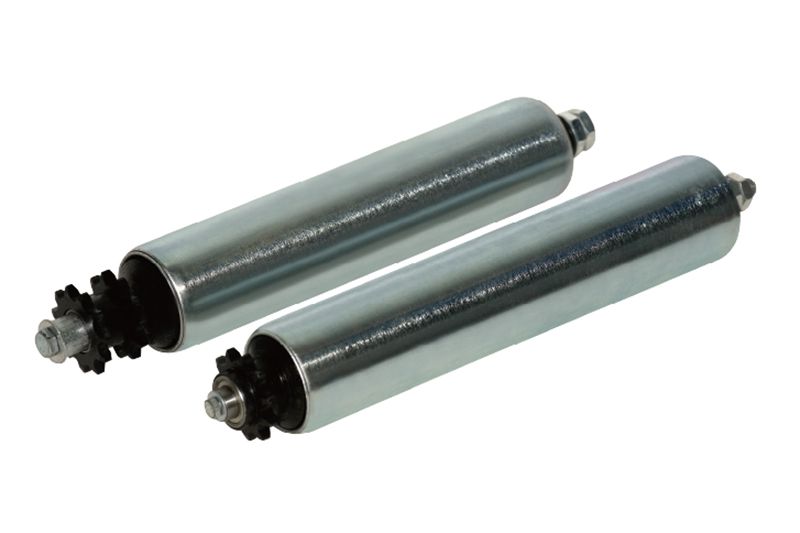

Accumulating conveyor roller comes with adjustable accumulation force through the nut at the end of the roller, providing high flexibility. The precision ball bearing is fixed tightly into the steel stamped axle housing, ensuring robustness and durability. The friction housing improves the wear resistance of the roller, significantly extending its service life.

Request a Quote

Features

Utilizes friction housing, allowing adjustable friction force to accommodate different load ranges.

Friction housing allows for excellent abrasion resistance and long service life.

Applications

Accumulating conveyor roller is used in situations where goods need to be accumulated, allowing for labor-saving and immediate access, thus effectively saving time and improving efficiency.

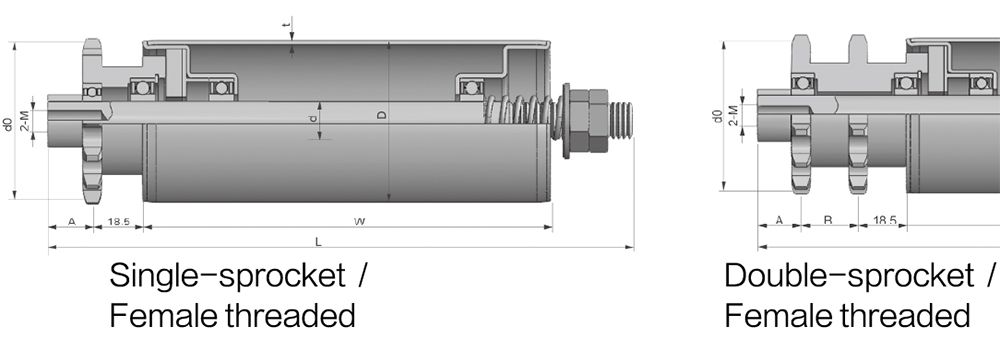

Technical Data

Tube Diameter (D)	Tube Thickness (T)	Axis Diameter (d)	Sprocket	Tube Material
Tube Diameter (D)	Tube Thickness (T)	Axis Diameter (d)	Sprocket	Galvanized Steel	Stainless Steel
38	1.5/2.0	12	08B11Z	√	√
50	1.5/2.0	12/15	08B11Z/08B14Z	√	√
60	2.0	12/15	08B14Z	√	√
76	3.0	20	10A13Z	√	√
89	3.0	20	10A13Z/10A15Z	√	√
